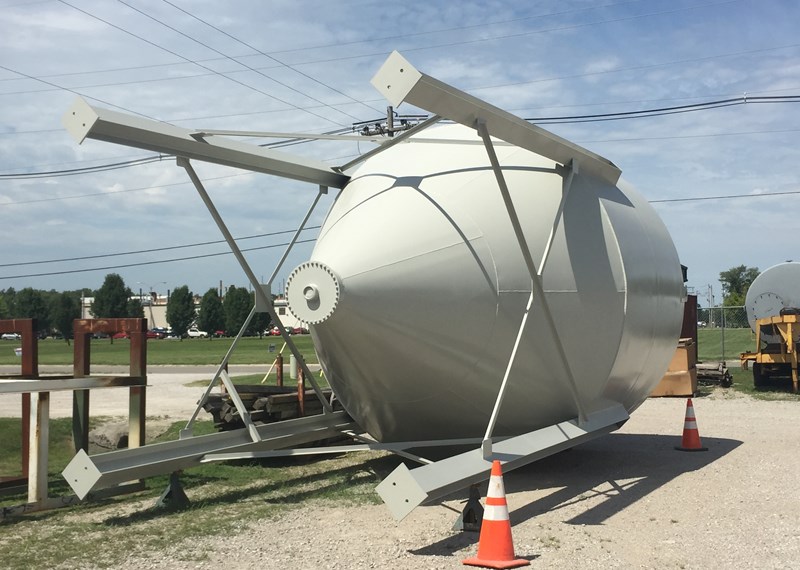

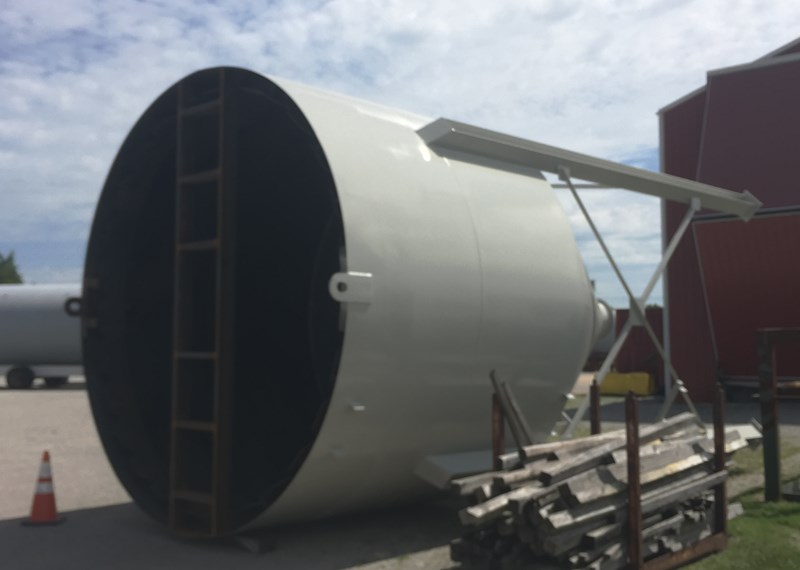

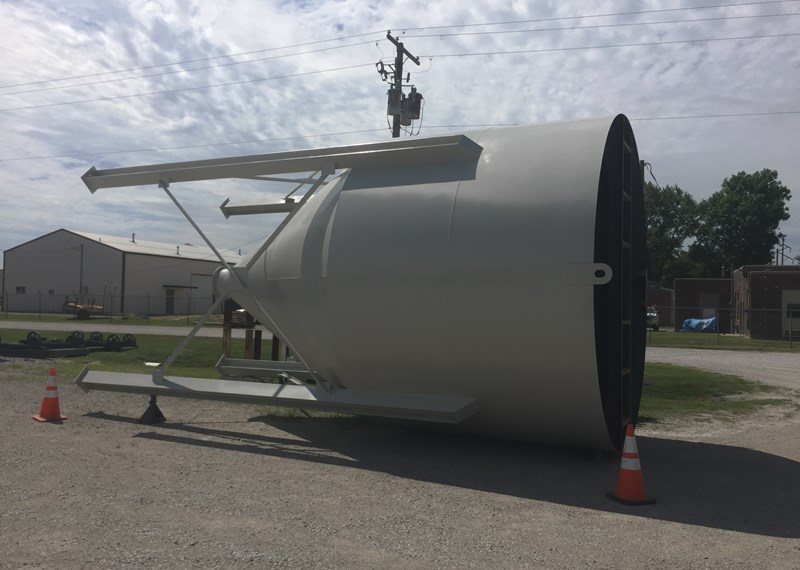

A monument cutting operation contracted Squibb Tank Company to replace a settling tank for their water conservation system.  The pictured elevated 60° cone bottom tank was fabricated to maximize the available space and increase the processing capacity of their facility.

Tank Specifications:

  • Size:  13'4" OD x 25'0" OAH
  • Material:  1/4" HR mild Carbon Steel Plate with Exterior Polyurethane Coating
  • Open Top complete with weir channel & mixer bridge

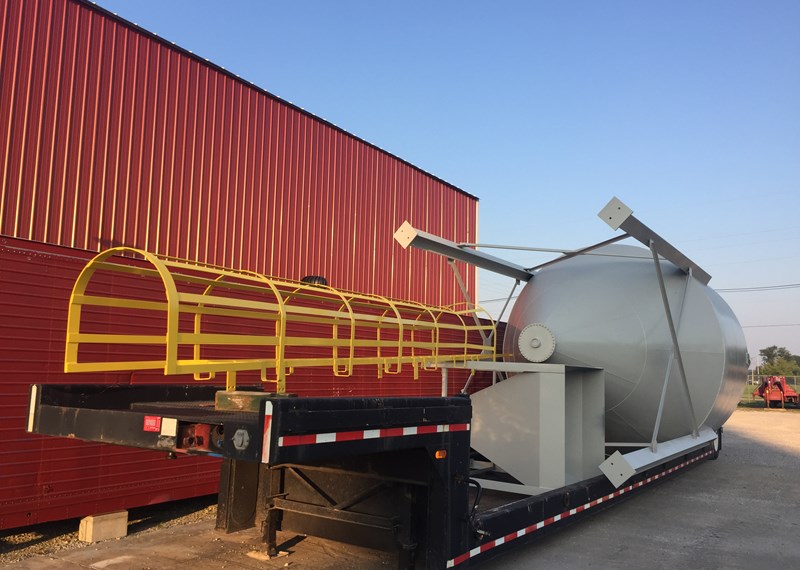

  • Safety-Caged & Straight Ladders for maintenance access
  • 18" Transition Manway with 4" NPT discharge
